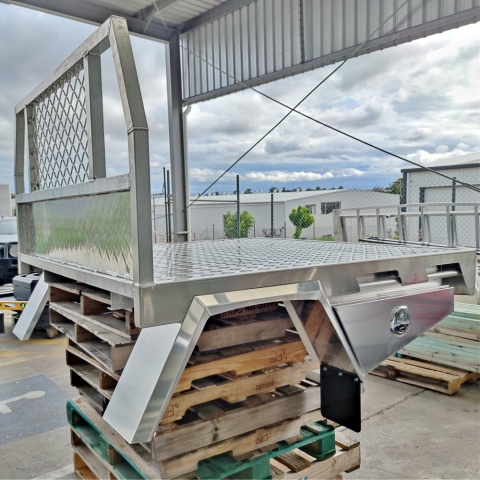

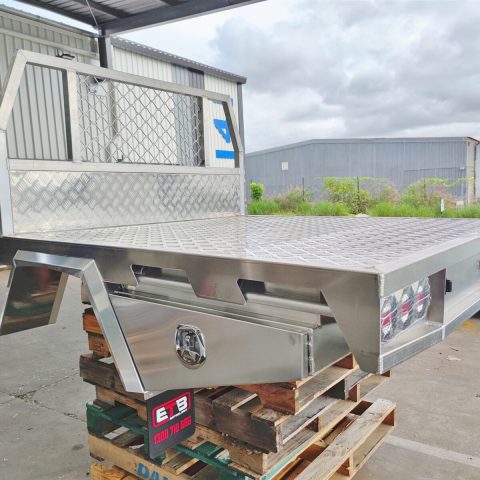

Aluminium 1780W x 1650L mm Headboard Tray with Under Tray Toolboxes

Aluminium Ute Tray 1650mm with Headboard

Alloy Tray with Tray Bed 1600mm Long x 1780mm W

Features:

• Total Size:1780mm x 1650mm (1600mm long for the canopy)

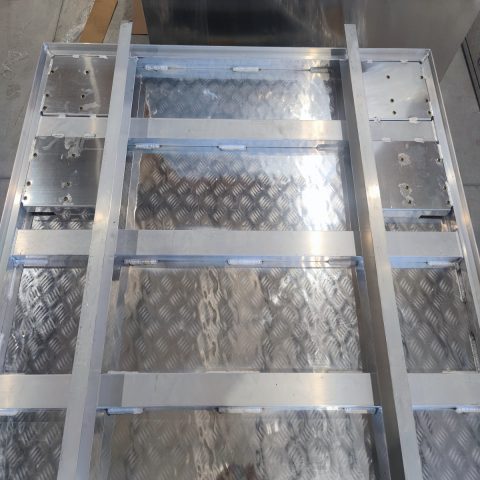

• Deck 3.5mm Aluminium Checker Plate Surface
• 5mm C Channel and main frame
• 40 x 80 RHS Sub Frame Build
• 32mm tube for tie down ropes
• Maxilight LED lights for DTRL, Indicator, Reverse and Stop (all necessary resistors will be provided according to your ute models, so please also leave your car model and year notes when you purchase)
• License Plate Lights Provided
• 3mm Flare Mudguards fits in up to 35inch tyre (please select your ute models when you purchase, we will predrill holes for mudguards fitment to make the mudguards in the center position of the wheel)

Please note: different location of mudguards will be according to different ute models.

This includes:

• 1 X Aluminium Tray Deck
• 1 X Pair of Flare Mudguard
• 2 X Mudflaps
• 1 x Pair of Under Tray Toolboxes (600mm, 750mm or 900mm long ones depending on the space left behind the mud guards)
• LED Tail Lights
• LED License Place Lights
• Fitting Kits are NOT included.

Note: Steel fitting kits are universal ones, cut is required to fit in your under tray toolboxes or mud guards if necessary.  All necessary bolts and nuts will be provided when you choose the options. Mud guards locations will have pre drill holes but cutting on the mud guards is required to fit properly. ETB recommends using a local fabricator for installations in your region.

Specifications:

• Tray Length 1650 Long
• Tray Width 1780 Wide
• Weight: Approx 130kg

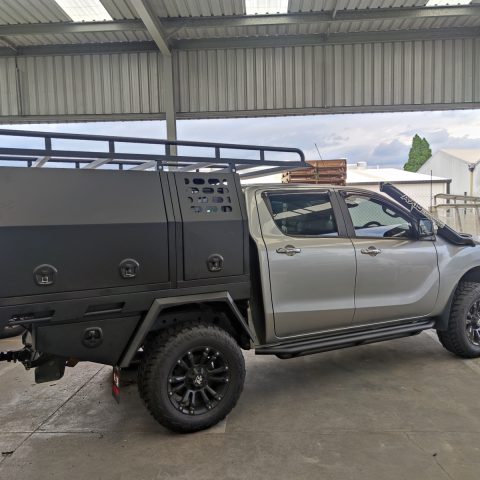

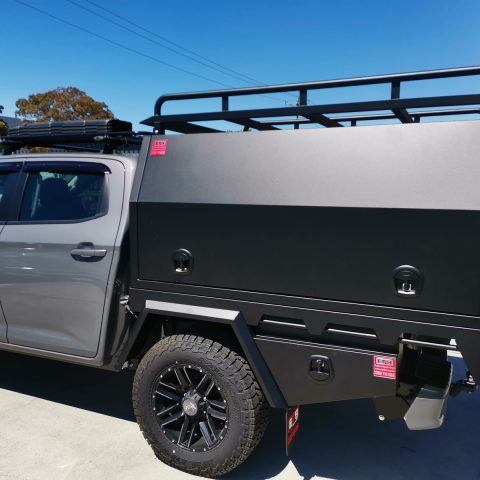

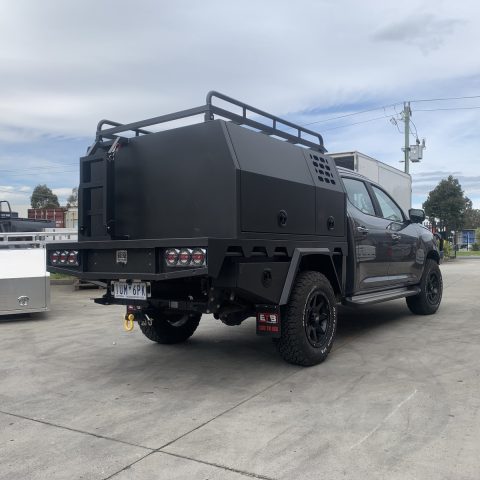

*Display photos will show you how it looks like on the utes.

*Available quantity is just indicating that customer can purchase it from our website. Normally for this tray, the lead time is around 2-3 weeks.
